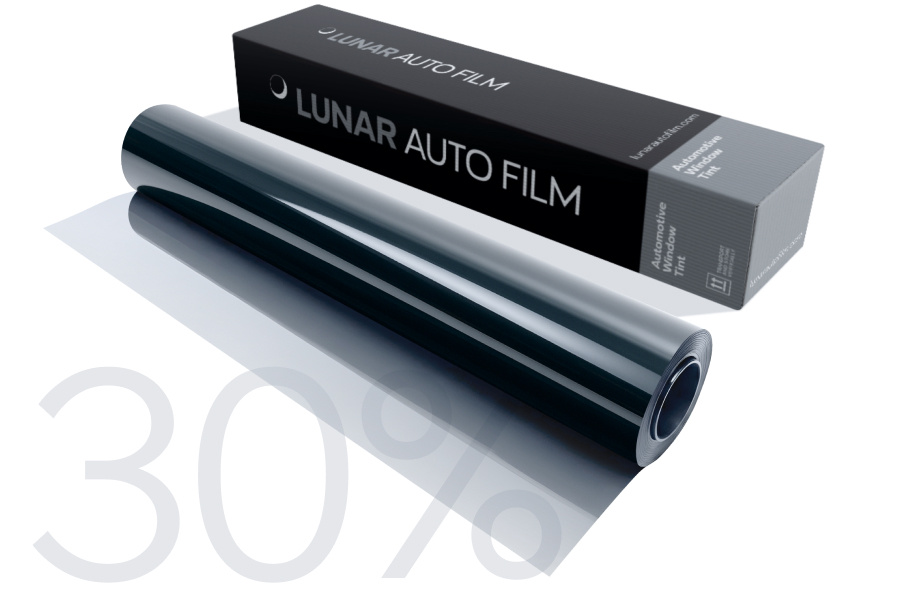

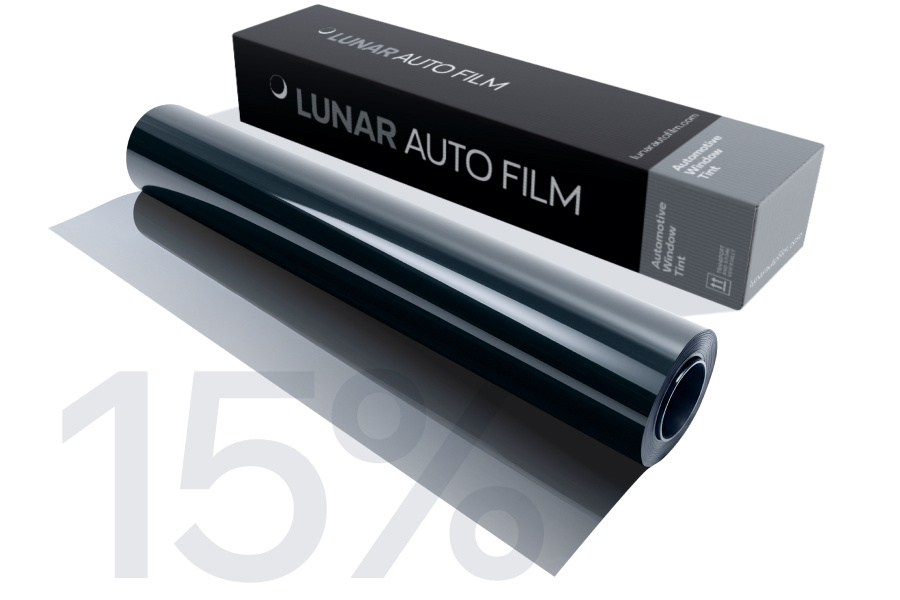

Carbon tint film
Carbon tint for daily installs: color-stable, quick to lay and clean to remove, comfort and privacy with sensible heat control — professional-grade quality at a truly unique price you don’t want to miss.
Thickness: 1.8 mil
UVR (Ultraviolet Rejection): 99.9%
IRR (Infrared Rejection): 91.7%

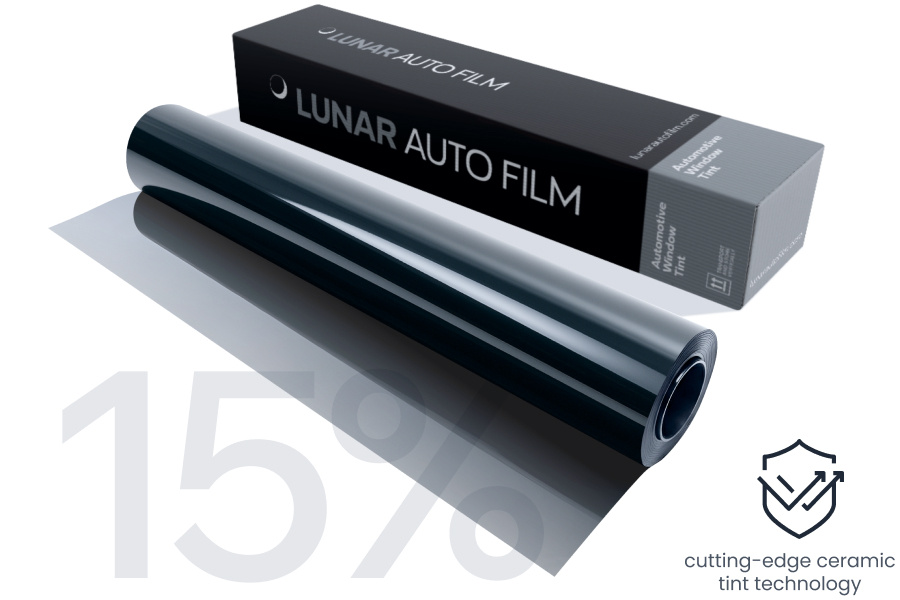

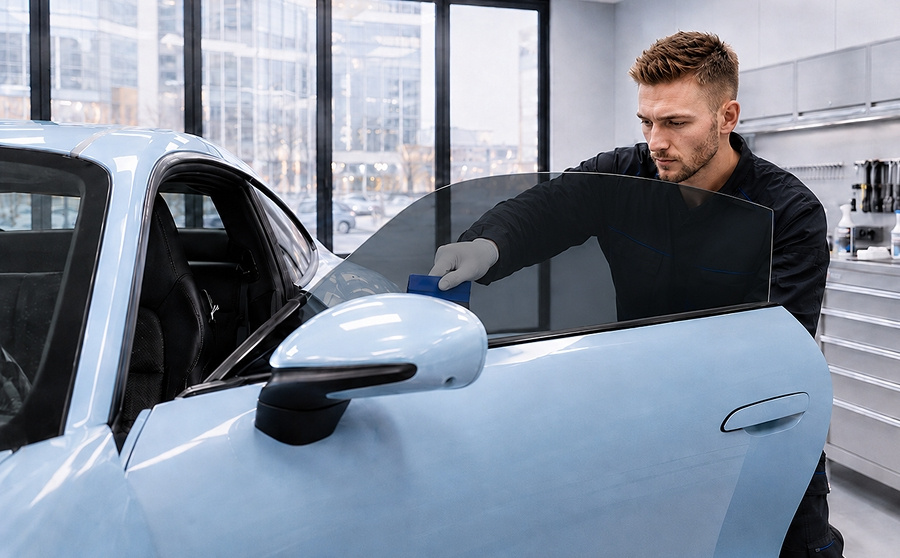

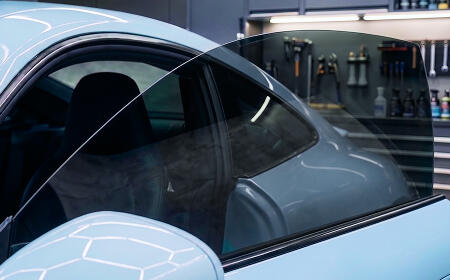

Ceramic tint film
Ceramic tint for maximum comfort: high heat and IR rejection with clear optics, predictable shrink and secure hold — quality at a truly unique price that’s too good to pass up.
Thickness: 2.0 mil
UVR (Ultraviolet Rejection): 99.9%
IRR (Infrared Rejection): 97%

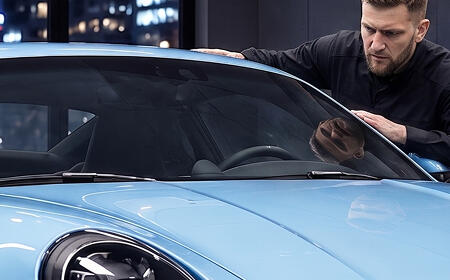

Windshield film

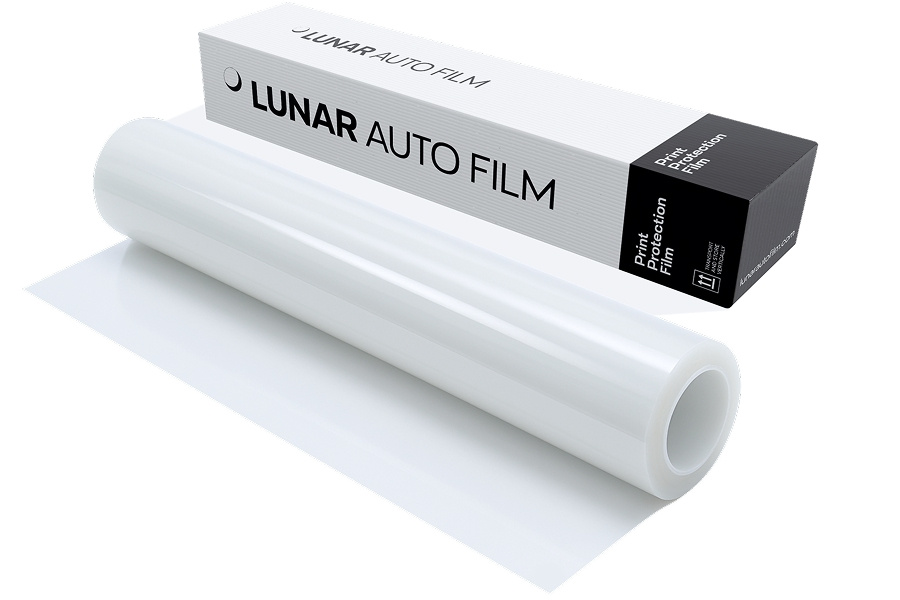

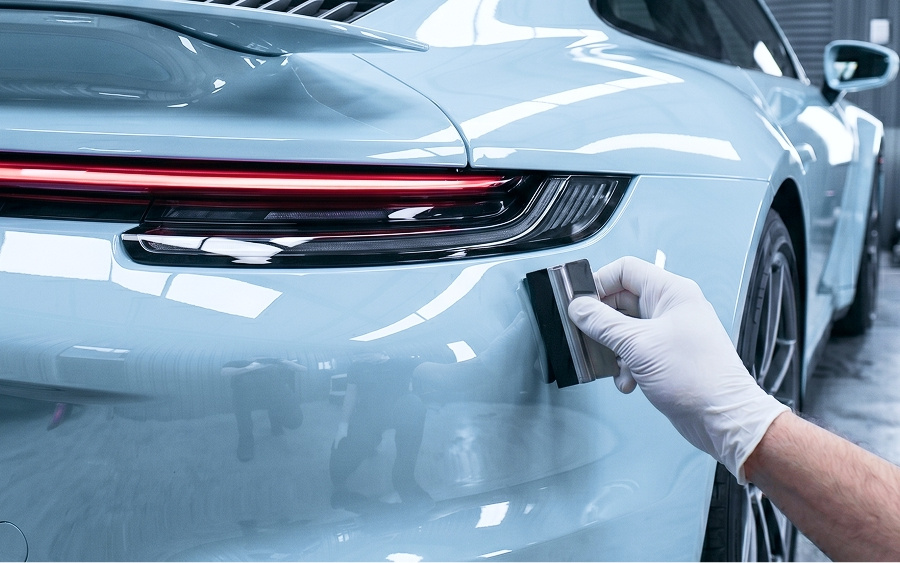

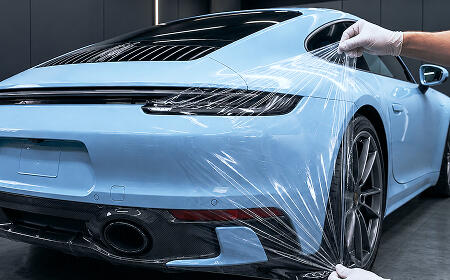

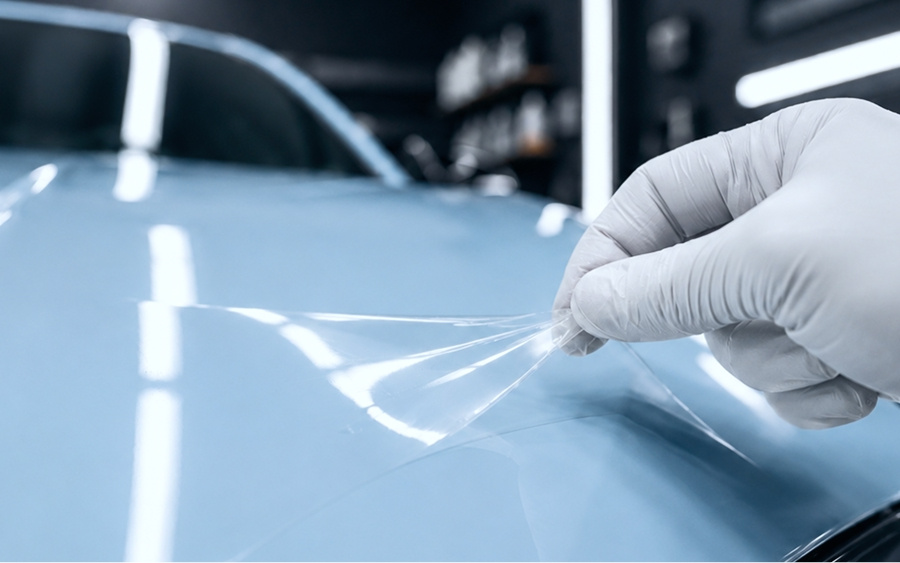

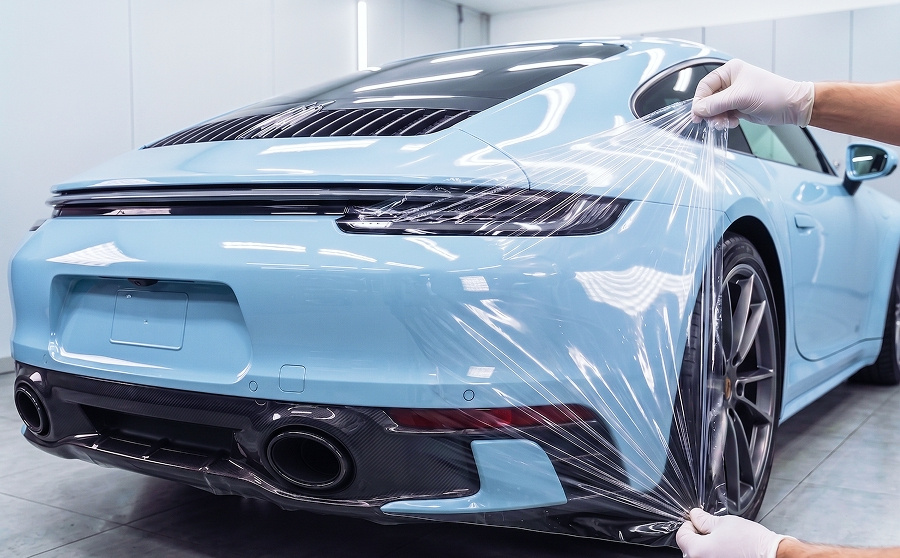

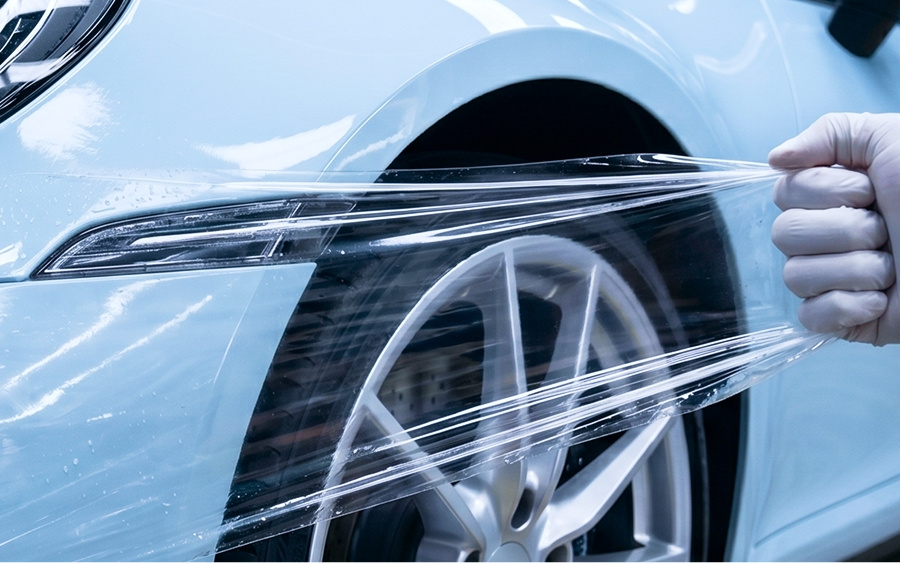

Paint protection film
Clear paint protection: shields hoods, bumpers, and mirrors from chips, road sand, and salts, cuts recon costs, and keeps the car looking new — top-tier quality at a truly unique price, value worth acting on.
Thickness: 8.5 mil
Car Tints and PPF F.A.Q.
Q. Can I mix different VLT on one vehicle?
Yes. You can use carbon window tint and ceramic window tint by zones. Check local rules for VLT limits before install.
Q. Are the rolls compatible with plotter cutters?
Yes. Standard widths like 24 inch tint roll and 36 inch tint roll work with common plotters. A 60 inch master roll is used for larger panels.
Q. What does ceramic window tint add versus carbon?
Ceramic often provides higher heat control at the same VLT and a cleaner view on lighter shades. Carbon offers a lower roll cost.
Q. Is window tint film suitable for a windshield visor strip?
Yes, shops often use a lighter VLT for the top strip. Confirm what is allowed in your state or region.
Q. How do I care for PPF after installation?
Paint protection film with a hydrophobic top coat washes easily. Use mild soaps and non-abrasive materials. Avoid harsh compounds.
Q. Where does PPF make the biggest difference?
On high-impact zones: front bumper, hood edge, front fenders, rocker panels, and door edges. This helps with rock chip protection.
Q. Are the films compatible with standard install solutions?
Yes. Window tint film works with typical slip solutions or install gels. Follow the product guidance on mix ratios and surface prep.
Q. Who handles distribution and reorders?
Distribution is handled by AK Dealer Services. Specify widths and VLT when ordering to speed up processing.
Wholesale Inquiry
Provide details of your order in any format. Our staff will review it and contact you to finalize your order. We make your work more comfortable.
Paint protection film
Technical Specification
| Code | TPU-PC185 • Batch:250918Z01B-07 | |||
|---|---|---|---|---|
| Basic parameters | Test Method | Specification | unit | Test result |
| Color | Visual Inspection | Transparent | / | Transparent |
| Liner PET Film Thickness | GB/T 6672-2001 | 90±3 | μm | 91 |
| Products Total Thickness | GB/T 6672-2001 | 210±5% | μm | 212.3 |
| Glossy | QC/T 1171-2022 | ≥93 | GU | 95.6 |

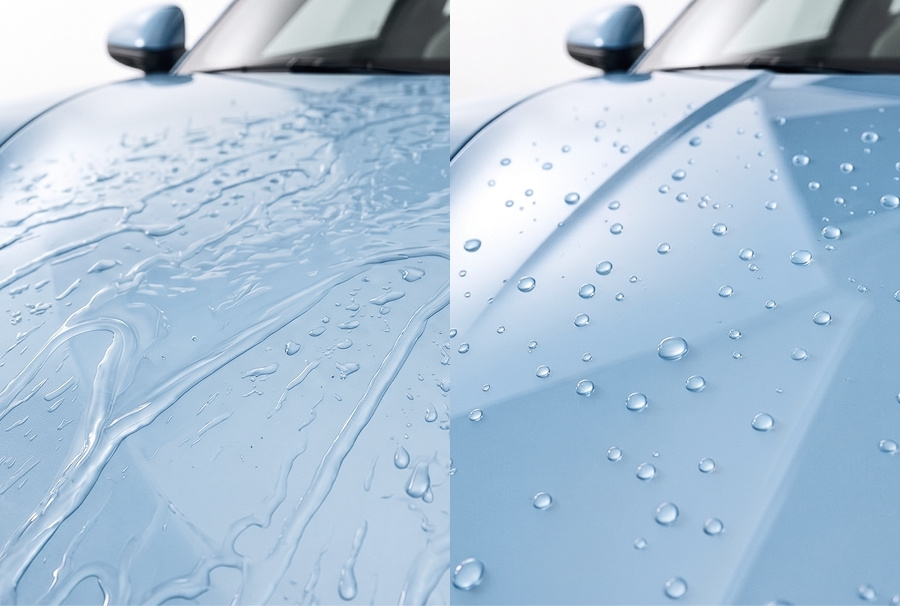

| Hydrophobic | Mark Pen / Water | Hydrophobic | / | Hydrophobic |
| Surface permeability resistance | MG-2110 Mark pen, 10 safter alcohol wipe | slight/no trace | / | slight traces |

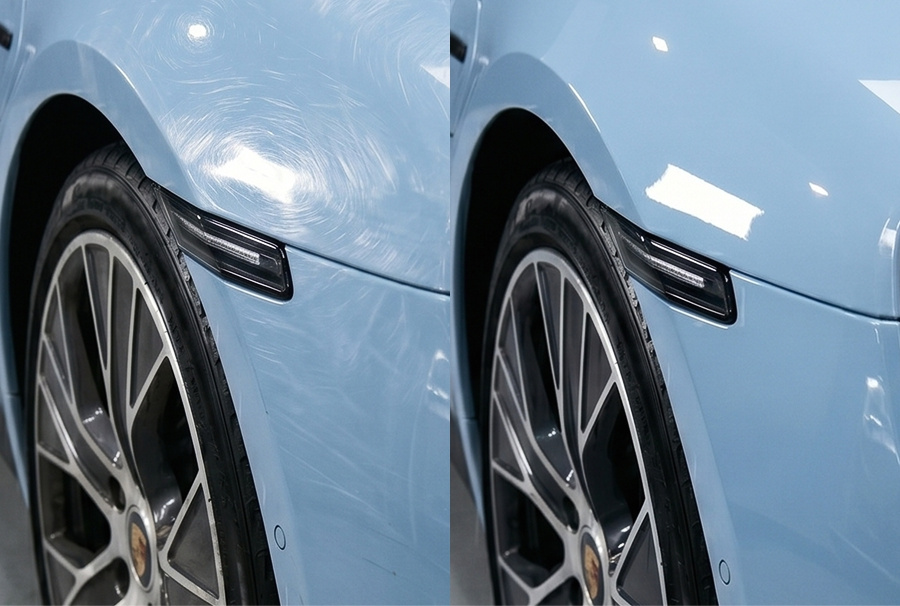

| Self-healing without heat | Brass brush of 1 Kg 10 times | Self-healing in 30 seconds | / | qualified |
| Acrylic layer peeling force/20min | GB/T 2792 | >600 | gf/inch | 1892 |
| Acrylic layer peeling force/24h | GB/T 2792 | >1000 | gf/inch | 2266 |
| Elongation at break of coating | GB/T 1040 | >80 | % | 170 |
| Tear strength | GB/T 529 | ≥40 | KN/m | 86.6 |
| Tensile Strength | GB/T 1040 | >15 | Mpa | 27.2 |
| Elongation at break of PPF | GB/T 1040 | >300 | % | 378.5 |
| 100% modulus | GB/T 1040 | >6 | Mpa | 6.8 |
Disclaimer
The indicators and data provided in this report are quality control, test, empirical data or conclusions of
Lunarautofilm, and are for reference only. Unless otherwise specified, the results shown in this report are limited to the test samples. This report is only used for customer evaluation and cannot be copied without the written permission of the laboratory.

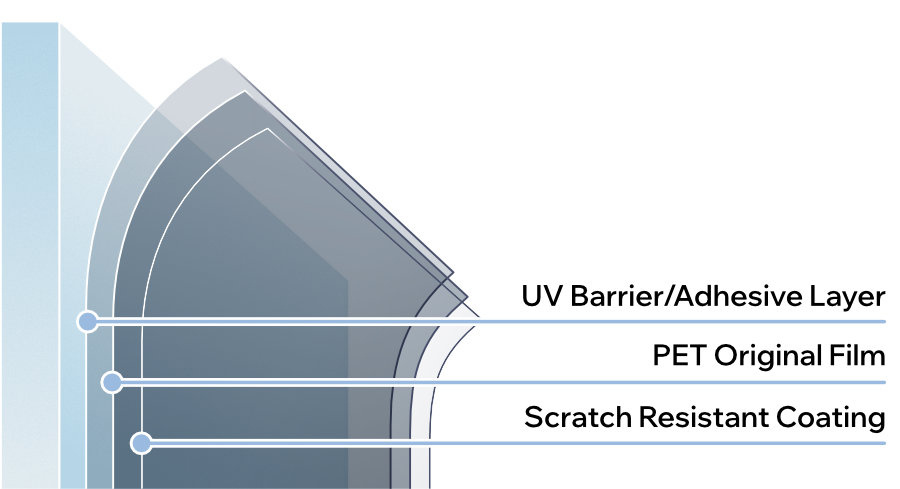

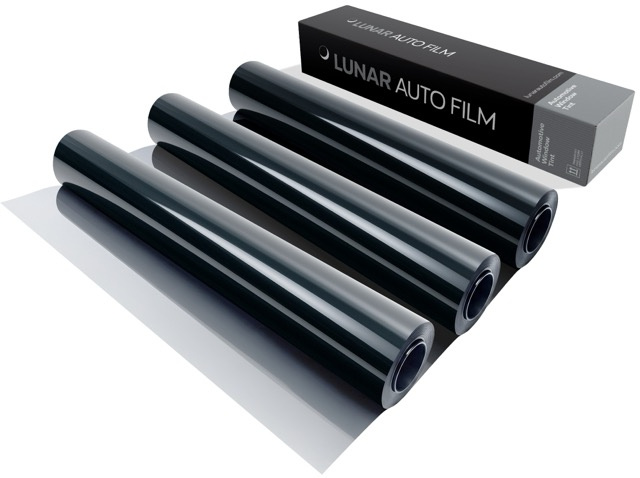

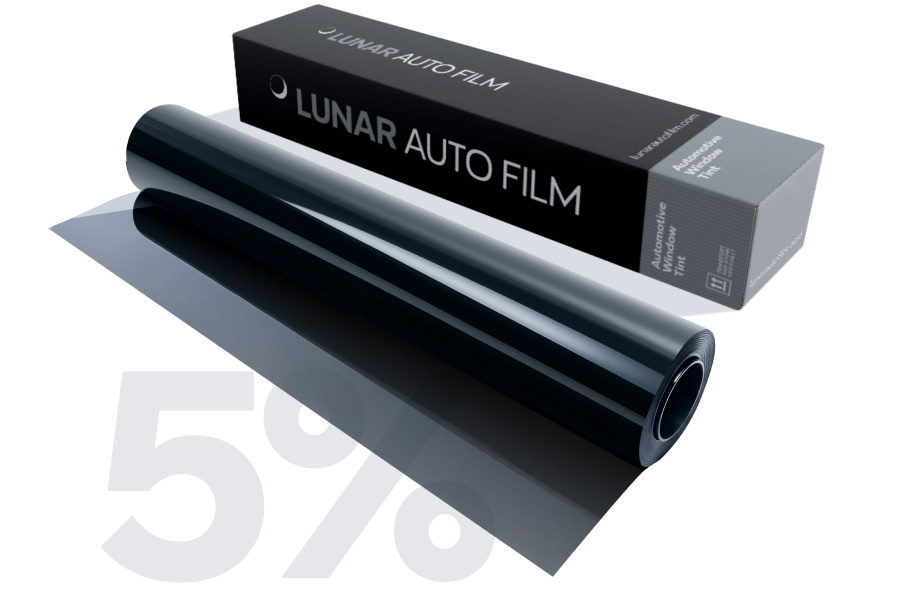

Carbon series film
Technical Specification
It is one of the most cost-effective nano-carbon films available today, produced with 100% pure inorganic materials and a 2-Ply construction. The film uses advanced industry nano-technology and a fully integrated manufacturing process. It installs easily, delivers strong heat-rejection performance, and does not fade. The film maintains high optical and thermal performance for more than ten years.
| Film | # | VLT(%) | VLR(%) | UV(%) | IRR(%)-950nm | TSER | Thickness |
|---|---|---|---|---|---|---|---|
| Carbon 5% | CB06 | 6 | 5 | 99.9 | 95 | 67 | 1.8mil |
| Carbon 15% | CB15 | 15 | 5 | 99.9 | 92 | 64 | 1.8mil |
| Carbon 30% | CB30 | 30 | 5 | 99.9 | 81 | 54 | 1.8mil |
Note:
The above data are laboratory test data and are not used for judging batch products. Front Windshield:
Nanocore layer
Clear and transparent
High-intensity skin care
Physical beauty

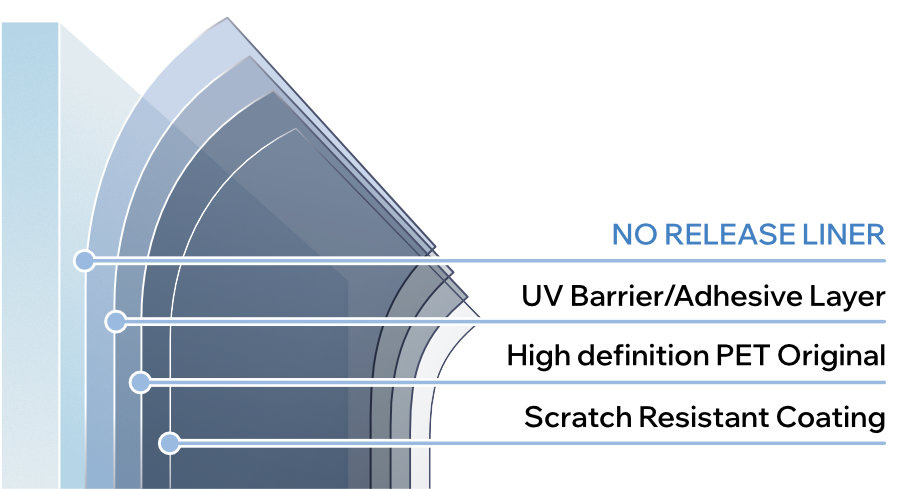

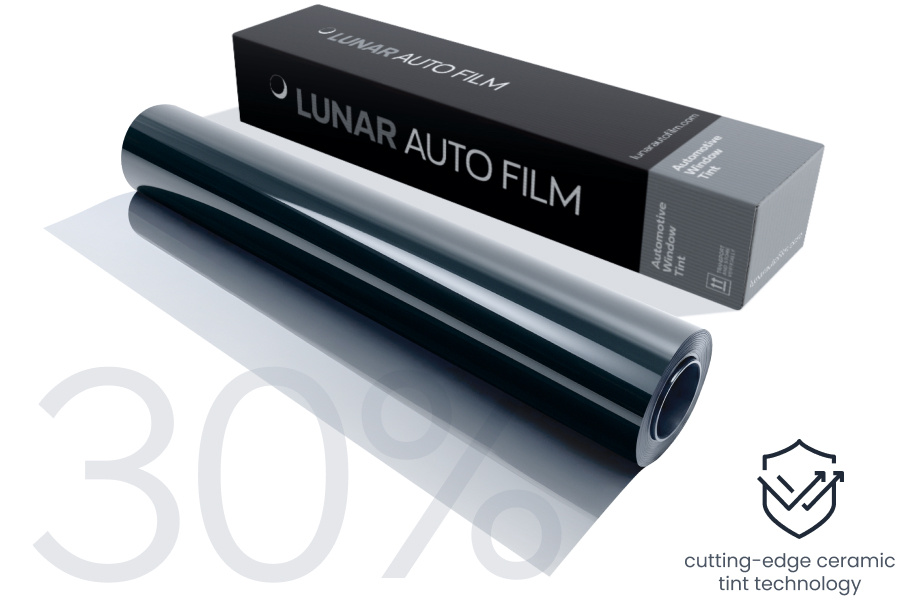

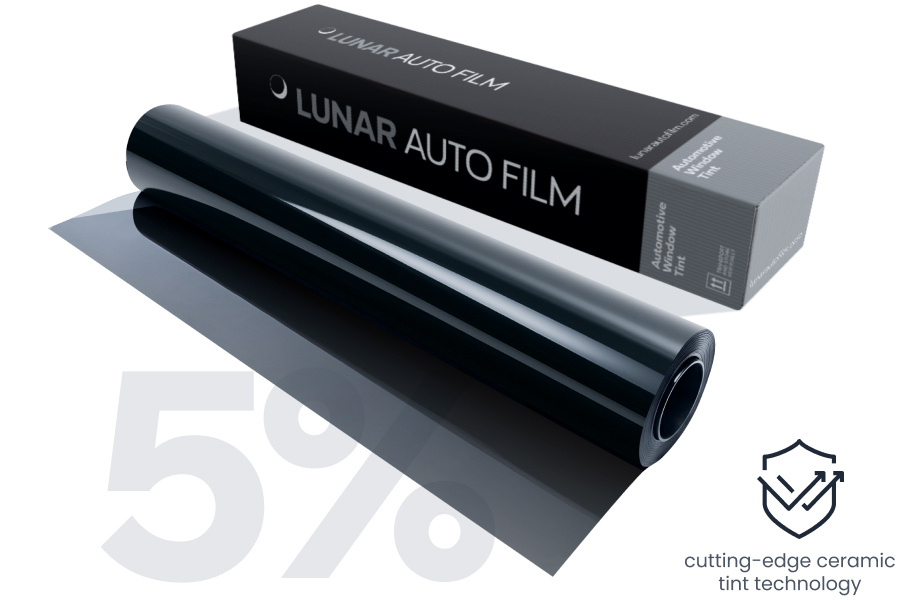

Ceramic series film
Technical Specification
HD GT is a PET-based window film made with inorganic nano-ceramic material and new-generation technology. The film provides a clear, transparent appearance and gives drivers and passengers an ultra-clear viewing experience without noticeable optical distortion. Its combination of titanium nitride and optical-grade polyester reduces interior glass reflections at night and eliminates the low-angle haze commonly seen in traditional window films during the day.
| Film | # | VLT(%) | VLR(%) | UV(%) | IRR(%)-950nm | TSER | Thickness |
|---|---|---|---|---|---|---|---|
| Ceramic 5% | GT0890 | 6 | 5 | 99.9 | 91 | 67 | 2mil |
| Ceramic 15% | GT1590 | 15 | 5 | 99.9 | 91 | 63 | 2mil |
| Ceramic 30% | GT3090 | 30 | 6 | 99.9 | 90 | 55 | 2mil |
Note:
The above data are laboratory test data and are not used for judging batch products. HD GT series products have many models, each with its own characteristics, and customers can choose the appropriate model according to their own needs.
Nanocore layer
Clear and transparent
High-intensity skin care
Physical beauty

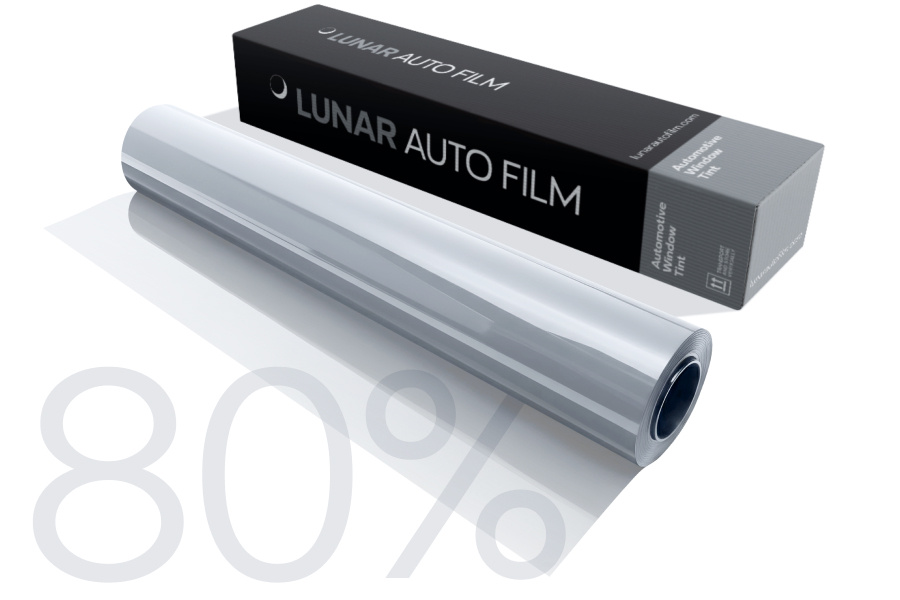

Ceramic series Windshield film
Technical Specification
The film is designed for windshield use, where maximum visibility is required, and its 80% visible light transmission provides a near-transparent appearance that meets the needs of high-clarity installations. HD GT is a PET-based ceramic window film made with inorganic nano-ceramic material and new-generation technology. Its combination of titanium nitride and optical-grade polyester reduces interior reflections at night and prevents the low-angle daytime haze seen in traditional films.
| Film | # | VLT(%) | VLR(%) | UV(%) | IRR(%)-950nm | TSER | Thickness |
|---|---|---|---|---|---|---|---|
| Ceramic 80% | GT8080 | 80 | 8 | 99.9 | 80 | 40 | 2mil |
Note:
The above data are laboratory test data and are not used for judging batch products. HD GT series products have many models, each with its own characteristics, and customers can choose the appropriate model according to their own needs.
Nanocore layer
Clear and transparent
High-intensity skin care
Physical beauty
